Bring Ultra-Fast 5G Indoors with a Simple, Clean Installation

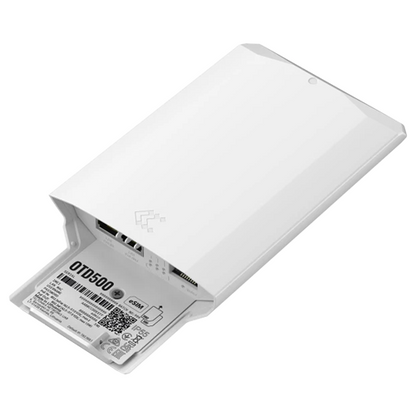

The Teltonika OTD500 is a high-performance outdoor 5G router engineered to deliver ultra-fast, stable internet connectivity directly into your building or facility. Designed for outdoor installation, the OTD500 captures the strongest possible 5G or 4G mobile signal at its source, then transmits high-speed data indoors via a single Ethernet cable. This eliminates the need for external antennas and avoids signal loss associated with long antenna cables, making it ideal for homes, offices, rural sites, and industrial environments.
With its robust IP55-rated enclosure, the OTD500 is built to withstand harsh weather conditions and extreme temperatures. Integrated high-gain antennas ensure optimal signal quality, while dual SIM slots and eSIM support provide seamless network redundancy and failover. The router features Power over Ethernet (PoE) input for easy, one-cable installation, and a PoE-out port for powering outdoor devices such as CCTV cameras.
Advanced security features, remote management capabilities, and support for industrial protocols make the OTD500 a versatile solution for a wide range of applications-including smart city infrastructure, remote monitoring, and secure site connectivity. Whether you need to bring fast 5G indoors, connect remote locations, or power outdoor devices, the Teltonika OTD500 delivers reliable, future-proof performance.
Specification
Mobile Connectivity:
5G Sub-6 GHz SA/NSA (up to 3.4 Gbps download / 900 Mbps upload), 4G LTE Cat 19, 3G fallback
Supported Bands:
- 5G NR: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78
- LTE: B1, B3, B5, B7, B8, B20, B28, B32, B38, B40, B41, B42, B43
- 3G: B1, B5, B8
SIM Slots:
2 x Mini SIM (2FF), 1 x eSIM (up to 7 profiles)
SIM Features:
Dual SIM failover, auto-switching, eSIM remote provisioning
Ethernet Ports:
2 x RJ45 Gigabit Ethernet (10/100/1000 Mbps)
Power over Ethernet (PoE):
PoE-in (802.3af/at) for power and data
PoE-out (802.3af, up to 15W) for powering external devices
Antennas:
4 x Internal omnidirectional antennas (max gain <4.9 dBi)
Wi-Fi:
Not included (wired connectivity only)
CPU:
MediaTek Dual-Core 880 MHz
Memory:
256 MB DDR3 RAM
Storage:
16 MB NOR Flash + 256 MB NAND Flash
Operating System:
RutOS (based on OpenWrt Linux)
Management:
WebUI (HTTP/HTTPS), SSH, Telnet, SNMP, TR-069, RMS (Remote Management System)
Security:
Stateful firewall, OpenVPN, IPsec, WireGuard, L2TP, PPTP, DMVPN, VLAN, access control, attack prevention, TPM 2.0 security module
Industrial Protocols:
Modbus, MQTT, DNP3, DLMS, OPC UA, IEC 60870-5-104
Operating Temperature:
-40°C to +55°C
Ingress Protection:
IP55 (weatherproof)
Power Input:
PoE-in (802.3af/at), 44–57 VDC (passive PoE supported)
Power Consumption:
Idle: <5 W, Max: <18 W
Dimensions:
110 x 49.3 x 235 mm
Weight:
385 g
Mounting Options:
Wall and pole mounting brackets included
Certifications:
CE, UKCA, EAC, RCM, CB, RoHS, WEEE
If an outdoor router is not the solution you need then how about the Teltonika RUTM51 which will provide a robust, reliable and secure 5G connection with Gigabit Ethernet ports and WiFi5.
